PINS & BENT PINS


Double Mounting Pin

Technical Specification

CODE ØA B C ØD E ØG THREAD
VS 721 22.0 62 89 28.6 197 12 9/8" UNF
VS 722   62 84 28.6 190.5 12 1"UNF
VS 723 22.0 58 90 28.0 195 12 27X3
VS 724       28   12 24X2

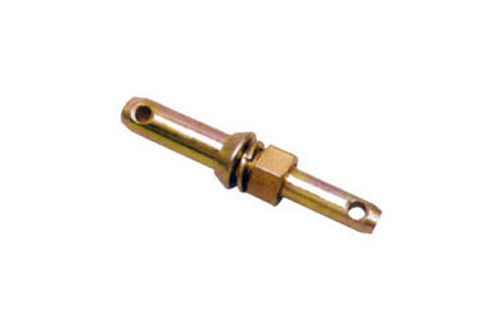

Adjustable Lower Link Pin

Technical Specification

CODE A E F B C D
VS 725 16 33 102 56 5/8"UNF 7
VS 726 22 46 135 70 7/8"UNF 12
VS 727 22 60 159 88 7/8"UNF 12
VS 728 28.6   133 62 7/8"UNF 12
VS 729 28.6 60 152.4 73 1"UNC 12
VS 730 28.6   152.4 76 9/8"UNC 12
VS 731 28.6 60 159 85 9/8"UNF 12

Top Link Pin

Technical Specification

CODE A B F D E
VS 741 15.9 76 113 19 8.3
VS 742 15.9 82.2 112.7 19 8.3
VS 743 19 52 90 22 12
VS 744 19 57 90 22 12
VS 745 19 65 95 28 10
VS 746 19 76 112 22 12
VS 747 19 85 117 28 10
VS 748 19 86 123 22 12
VS 749 19 92 127 22 12
VS 750 19 95 133 28 12

Lower Link Pin

Technical Specification

CODE A B F D E F G H I J K L M
VS 764 156 30 94 32 5 45 15 12.5 Ø35 Ø23 Ø28.55 M20X1.5P M16X1.5P

Top Link Pin with Linch Pin

Technical Specification

CODE D B A C
VS 771 14.3 73 84 6
VS 772 19 77 92 6
VS 773 19 108 120 8
VS 774 25 98 120 8

Double Mounting Pin

Technical Specification

CODE F G H A B C D E I J
VS 775 22 22 28 200 55 115 40 67 12 6.5
VS 776 25 22 28 200 55 115 40 67 12 6.5

Double Mounting Pin

Technical Specification

CODE A B C D E J F G H I
VS 777 25 19 40 70 100 210 80 20 12 12
VS 778 25 19 38 96 78 212 62 22 12 12
VS 779 25 19 26 66 78 170 70 18 6.5 6.5
VS 780 28 22 35 75 90 200 75 20 12 12
VS 781 28 22 40 70 100 210 80 20 12 12

Implement Mounting Pin

Technical Specification

CODE A B D E F G C
VS 782 28 22 62.5 84.5 70.5 47 12
VS 783 28 22 76.5 104.5 88 60 12
VS 784 28 22 85 105 85 62 12
VS 785 28 22 103 78 60 87.2 12

Top Link Pin Without Head

Technical Specification

CODE A B C E D
VS  791 19 140 96 22 12
VS 792 19 170 126 22 12
VS 793 19 207 163 22 12
VS 794 19 254 210 22 12
VS 795 25 164 120 22 12

Double Mounting Pin

Technical Specification

CODE A B C E H G F C
SETLA 796 25 19 80 80 160 18 53 5

Double Mounting Pin

Technical Specification

CODE A B D E H G F C
VS 797 19 16 74 82 156 16.5 55 5
VS 798 22 16 80 88 168 12 68 5
VS 799 25 19 85 81 166 18 53 5
VS 800 25 19 90 90 180 18 57 5
VS 801 28 22 90 90 180 18 57 5
VS 802 28 22 90 85 75 16.5 50 6
VS 803 28 22 90 90 180 16.5 61 6

Bent Pins Bent Handle Hitch Pin (with & without pin chain)

Technical Specification

CODE CODE A B C
WITH L/P.CHAIN W/O L/P.CHAIN
VS 811 AHHP1091N 19 123 12
VS 812 AHHP1092N 19 135 12
VS 813 AHHP1093N 19 175 12
VS 814 AHHP2024N 22 123 12
VS 815 AHHP2025N 22 135 12
VS 816 AHHP2026N 22 175 12
VS 817 AHHP2057N 25 123 12
VS 818 AHHP2058N 25 135 12
VS 819 AHHP2059N 25 175 12
VS 820 AHHP2810N 28 135 12
VS 821 AHHP2811N 28 175 12
VS 822 AHHP2812N 28 123 12

Bent Handle Hitch Pin

Technical Specification

CODE A B C D E
VS 823 19 25 17 72 5

Bent Hitch Pin

Technical Specification

CODE A C B D
VS 824 12.7 80 4 7
VS 825 15.9 80 4 11
VS 826 19 93 5 11.5
VS 827 19 99 8 9

Hitch Pin with Hair Pin

Technical Specification

CODE A B C D
VS 831 9.5 104 3 141
VS 832 9.5 110 3 147
VS 833 12.7 92 4 127

Linch Pin Pear /Oval Shape

Technical Specification

CODE A B C D E
VS 834 4.5 24 38 44 2
VS 835 4.5 30 38 44 2
VS 836 6 32 40 48 2-4

Square Head Linch Pin with Chain

Technical Specification

CODE A C B D
VS 851 12 58 25 4
VS 852 14 48 44 4
VS 853 16 50 44 4
VS 854 19 60 48 4

Shaft Locking Pin/Pto Pin (Round)

Technical Specification

CODE A C B D E F
VS 855 6 60 50 12 6 2.5
VS 856 6 67 57 12 6 2.5
VS 857 8 45 38 15 7 2.5
VS 858 8 70 60 15 7.50 2.5
VS 859 9.5 67 57 16 10 2.5
VS 860 10 45 38   7 2.5
VS 851 10 70 60 19 8.50 2.5

Shaft Locking Pin/Pto Pin (Square)

Technical Specification

CODE A C B D E F
VS 862 6 67 57 12 6 2.5
VS 863 8 70 63 15 7 2.5
VS 864 9.5 67 57 18.5 9.5 2.5

Stabilizer Pin

Technical Specification

CODE B A C D E F G H I
VS 732 19 19 19 27 3.5 3/4" UNF 28.6 35 73
VS 733 22 17 15.9 29 3.5 5/8" UNF 28.6 32 67
VS 734 22 18.7 15.9 29.5 3.5 5/8" UNF 28.6 32 73
VS 735 22.2   15.9 29 3.5 5/8" UNF 28.6 32 79

Linch Pin

Technical Specification

CODE A B C E D
VS 840 4.5 28.6 35 44 3
VS 841 4.5 33 42 51 3
VS 842 4.76 28.6 35 44 3
